Where To Put Rockbros Bike Water Bottle Holder

The best place for a Rockbros bike water bottle holder is usually the down tube or seat tube. These frame positions keep water accessible while maintaining balance, clearance, and secure bottle retention.

Most standard bottle-cage mounts use two threaded holes with approximately 64 mm spacing. Many cycling bottles also hold roughly 20 to 21 ounces, making frame placement especially important.

However, the ideal location depends on your bike frame, riding style, bottle size, and holder design. A road bike, mountain bike, folding bike, and e-bike can require different mounting solutions.

This guide explains exactly where to install your ROCKBROS holder and how to choose the safest position. You will also learn what to do when your frame lacks standard mounting holes.

Choose the Mounting Position Before Installing

Start by identifying which ROCKBROS holder you own because mounting methods differ between models. A traditional cage usually requires threaded frame holes, while an adapter can use straps.

Next, inspect your frame for two threaded mounting points. These points usually appear on the down tube, seat tube, or both locations.

Before tightening anything, place the holder against the frame without installing the screws. Then check bottle access, frame clearance, and interference with cables or accessories.

Finally, test the bottle position with your normal riding posture. You should reach the bottle naturally without twisting your torso or losing control.

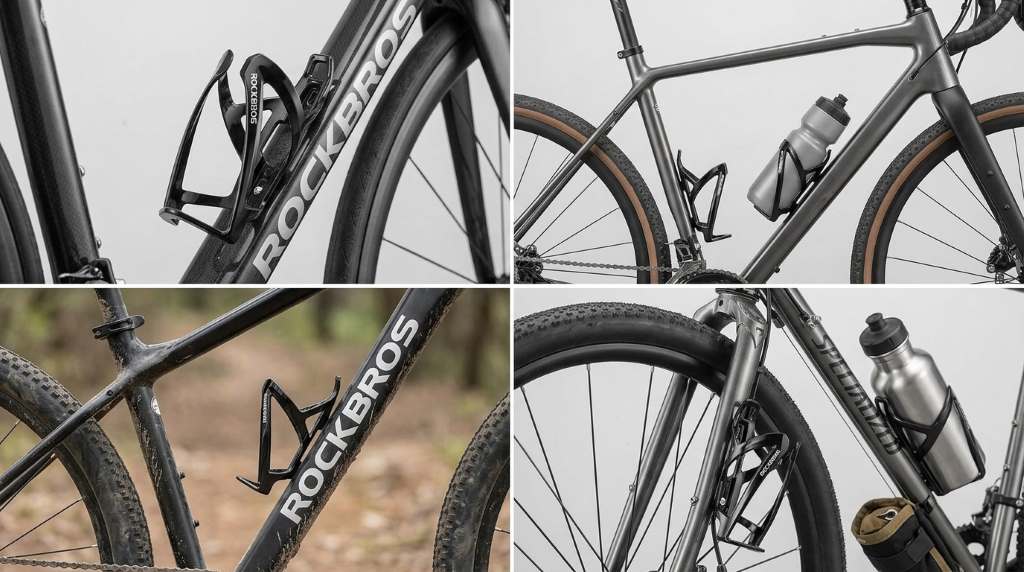

Best Places to Put a ROCKBROS Bottle Holder

1. Down Tube

The down tube is usually the best overall location for a standard ROCKBROS bottle cage. It provides convenient access while keeping the bottle near the bike’s center.

Additionally, this position works well for road bikes, hybrids, touring bikes, and many mountain bikes. It also leaves the seat tube available for another bottle when space allows.

Place the cage so the bottle sits securely without touching the frame or front wheel. Leave enough clearance for easy bottle insertion and removal.

• Best for everyday cycling and longer rides.
• Easy access while maintaining a stable riding position.
• Works especially well with standard threaded cage mounts.
• Allows a second bottle on many frames.

However, check your frame geometry before choosing this location. Some compact frames provide limited clearance around the down tube.

2. Seat Tube

The seat tube offers another excellent mounting position when your bike includes compatible threaded holes. It can also complement a down-tube cage for longer rides.

Furthermore, the seat tube often keeps the bottle away from handlebar accessories and front cables. That arrangement can create a clean and practical cockpit.

Check the distance between the bottle cage and your saddle before installation. A large saddle bag may interfere with bottle removal.

• Excellent for a second water bottle.
• Useful when the down tube carries other equipment.
• Can provide convenient access on many traditional frames.
• Works best when saddle bags leave enough clearance.

For mountain bikes, however, suspension movement can change the available space. Always compress the suspension carefully and check for possible contact.

3. Top Tube With an Adapter

A top-tube position can work when you use a compatible ROCKBROS mounting adapter. This solution helps bikes without traditional bottle-cage mounting points.

However, the top tube requires careful positioning because your legs move close to this area. Keep the holder outside your natural knee path.

Choose a location that keeps the bottle secure while allowing effortless removal. A poorly positioned cage can become uncomfortable during every pedal stroke.

4. Seat Post With a Compatible Mount

A compatible adapter can also place a bottle holder around the seat post. This option helps riders who lack usable frame mounting holes.

Nevertheless, seat-post mounting requires extra attention to diameter, clamp pressure, and saddle-bag clearance. Never position the holder where it interferes with saddle adjustment.

Also, protect the frame finish when using clamp or strap systems. A silicone interface can reduce slipping and unwanted surface damage.

5. Handlebar Area for Bag-Style Holders

Some ROCKBROS water bottle bags support handlebar mounting instead of traditional cage installation. These products suit riders who prioritize immediate drinking access.

A handlebar holder can work particularly well on commuter bikes and casual bicycles. It also helps bikes with unusual frames or limited cage mounting space.

However, keep the bottle away from brake levers, shifter controls, cables, and displays. Your hands must reach every control without obstruction.

Where Should You Put It on Different Bike Types?

Bike Type	Preferred Position	Important Check
Road bike	Down tube or seat tube	Check bottle reach and frame clearance
Mountain bike	Down tube or seat tube	Check suspension and terrain clearance
Hybrid bike	Down tube	Check cable routing
Touring bike	Down tube and seat tube	Leave room for bags
Folding bike	Adapter-mounted frame position	Confirm folding clearance
E-bike	Frame mounting points	Avoid batteries and wiring
Kids’ bike	Frame adapter or compact mount	Keep bottle within safe reach

This comparison shows why one universal mounting position cannot fit every bicycle. Frame geometry and equipment placement should always guide the final decision.

How to Install a ROCKBROS Holder on Threaded Holes

First, locate the two threaded holes and remove any temporary plugs or screws. Clean visible dirt around the mounting area before positioning the cage.

Next, align the cage holes with the frame holes. ROCKBROS cages with oval mounting holes can provide limited positioning adjustment.

Start each screw by hand instead of immediately using an Allen wrench. Hand-threading helps prevent cross-threading and protects the frame threads.

Then tighten both screws gradually and alternate between them. Stop when the holder feels secure without excessive force.

1. Locate compatible threaded mounting holes.
2. Clean the mounting surface.
3. Position the ROCKBROS holder.
4. Hand-thread both mounting screws.
5. Alternate tightening between the screws.
6. Check the holder for movement.
7. Insert your bottle and test clearance.

After installation, pull the cage gently in several directions. It should remain stable without shifting, rattling, or twisting.

Then ride slowly in a safe area and test bottle removal. Make sure you can drink without changing your normal steering position.

What If Your Bike Has No Bottle Mounts?

You do not need to drill your bicycle frame to add a water bottle holder. A compatible ROCKBROS adapter can create a mounting point using straps or similar hardware.

First, choose a straight section of suitable tubing with enough clearance. Then position the adapter where your bottle remains accessible and stable.

ROCKBROS offers adapter-style mounting solutions designed for various frame locations. These can accommodate positions such as the top tube, down tube, seat post, and seat tube.

Before riding, tighten the straps evenly and verify that the adapter cannot rotate. A rotating mount can make bottle removal difficult and reduce stability.

Best Adapter Locations

• Down tube: Usually the strongest practical choice for balanced access.
• Seat tube: Useful when the down tube already carries equipment.
• Top tube: Suitable when knee clearance remains comfortable.
• Seat post: Helpful when frame mounting points are unavailable.

Avoid placing the adapter directly over delicate cables or exposed electronic components. Also, never allow straps to interfere with moving suspension parts.

How to Find the Correct Bottle Holder Angle

Angle matters because bottle removal should require one smooth movement. A cage that sits too upright or too low can make drinking unnecessarily difficult.

Start with the holder roughly aligned with the frame tube. Then make small adjustments based on your riding position and bottle clearance.

For aggressive riding, prioritize retention over effortless removal. A slightly tighter cage can provide greater confidence on rough surfaces.

For commuting, prioritize accessibility and comfort. You should remove the bottle without reaching far away from your natural riding position.

Check These Clearances Before Your First Ride

Correct placement involves more than simply finding two mounting holes. Several nearby components can affect whether the bottle cage works properly.

• Check clearance from the crank arms.
• Check clearance from front and rear suspension components.
• Check clearance around brake and shift cables.
• Check clearance from battery housings on e-bikes.
• Check saddle-bag interference near the seat tube.
• Check bottle removal space around the frame.
• Check folding mechanisms on folding bicycles.

Also, test the actual bottle you plan to carry. Different bottles can vary significantly in diameter, height, and retention behavior.

Remember that an empty bottle can behave differently from a full bottle. Test the holder with a filled bottle before committing to longer rides.

Common ROCKBROS Bottle Holder Placement Mistakes

Mounting Too Close to Moving Parts

Never install the holder where suspension, wheels, cranks, or folding joints can contact it. Even minor contact can become dangerous during movement.

Ignoring Bottle Removal Direction

Some frames require angled bottle removal because the top tube limits upward movement. In that situation, choose a cage with suitable access.

Overtightening the Screws

Excessive tightening can damage threads, hardware, or the cage. Tighten securely while avoiding unnecessary force.

Blocking Other Accessories

A bottle cage can interfere with frame bags, pumps, lights, or tool storage. Plan your complete accessory layout before final installation.

Choosing Convenience Over Stability

The easiest bottle position is not always the safest position. Prioritize secure retention whenever you ride rough roads or trails.

How to Choose Between One and Two Bottle Holders

One bottle often works for short rides, commuting, and casual cycling. Longer rides may benefit from a second cage when your frame provides sufficient space.

For two cages, the down tube and seat tube usually provide the most practical combination. This arrangement distributes bottles without concentrating weight near the handlebars.

However, frame bags can change this setup completely. Check your storage system before installing a second cage.

ROCKBROS Holder Placement for Long-Distance Riding

Long-distance riders should prioritize reach, retention, and total hydration capacity. The bottle should remain accessible without disrupting your riding rhythm.

A down-tube cage often provides an effective primary position. A seat-tube cage can then serve as a secondary water source.

For touring bikes, consider how panniers and frame bags affect access. A technically perfect cage position becomes inconvenient when luggage blocks the bottle.

Therefore, load your bike exactly as you would during a real trip. Then test bottle access before starting the journey.

Quick Placement Checklist

• Confirm your ROCKBROS model and mounting method.
• Find threaded frame holes or choose a compatible adapter.
• Prefer the down tube for a standard primary cage.
• Use the seat tube when adding a second cage.
• Check bottle diameter and cage retention.
• Keep cables, cranks, wheels, and suspension clear.
• Verify comfortable bottle removal from your riding position.
• Tighten hardware securely without overtightening.
• Test the loaded bottle before longer rides.

Frequently Asked Questions

Where is the best place for a ROCKBROS water bottle holder?

The down tube usually offers the best combination of accessibility, stability, and balanced weight distribution.

Can I put a ROCKBROS holder on the seat tube?

Yes, provided your holder and frame support the required mounting method and sufficient clearance.

Can I install a ROCKBROS holder without frame holes?

Yes, use a compatible adapter or strap-based mounting system instead of drilling your bicycle frame.

Can I mount a ROCKBROS holder on the handlebars?

Yes, certain ROCKBROS bag-style holders support handlebar mounting when installed with adequate control clearance.

Should a ROCKBROS bottle holder move after installation?

No, the holder should remain firmly positioned without wobbling, rotating, or interfering with the frame.

Final Verdict

For most bicycles, put a standard ROCKBROS bottle cage on the down tube first. Use the seat tube for additional capacity when clearance and frame design permit.

If your bike lacks threaded mounts, choose a compatible ROCKBROS adapter instead. Then prioritize secure attachment, comfortable reach, and complete clearance from moving components.

Before your next ride, install the holder, fill your bottle, and perform a short stability test. A few minutes of checking can prevent annoying bottle movement during a much longer ride.

Choose the mounting position that fits your bike rather than forcing your bike around the holder. That approach delivers better access, safer retention, and a cleaner riding setup.
